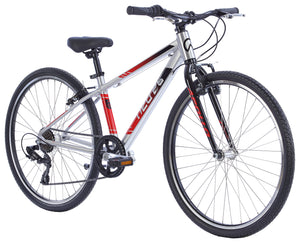

Neo+ 26 7s Boy's
The largest size in the Neo+ range features 26” wheels with semi-slick tyres for smooth and fast rolling performance. 7 speed Shimano gears allow for quick and reliable shifting, perfect for tackling hills and longer distance rides. A low standover height helps to boost rider confidence and comfort by making it easier for kids to easily touch the ground when they need to, and lightweight kid-sized components enhance manoeuvrability.
HIGHLIGHTS
- New junior-specific 26” frame with light weight oversized thin-wall alloy, hydroformed tubes and new streamline stays.
- Light weight alloy straight blade fork.
- Low standover frame, allowing easy operation, boosting rider confidence and safety.
- Light weight alloy hubs, rims, handlebars and stem, which reduces the overall weight of the bicycle.
- Super comfortable junior-specific saddle and grips, for ultimate riding comfort.
- Light weight alloy crank set with child-specific easy pedalling gearing.
- Shimano 7 speed shifting for reliable shifting performance.
- Full alloy child-specific short reach brake levers.
SPECIFICATIONS
FRAMELightweight, easy to ride alloy kids frame, with low stand over height, new hydroformed tubes and streamline stays
FORK26" integrated lightweight rigid 6061 alloy fork with 25.4 straight blades
HANDLEBARLightweight alloy low riser 560mm
GRIPKraton grips
HEADSTEMAlloy A-head 4 bolt stem with Rise: 10° Bore: 25.4mm, L: 60mm.
CRANKSETAlloy oversize 3 piece crank with 36T chainwheel and double chainguard
BOTTOM BRACKETNutted bottom bracket
PEDALSHigh impact plastic
CASSETTEShimano MF TZ21 14-28T 7 speed freewheel
BRAKESAlloy linear pull brakes, short reach alloy lever for kids
WHEELS26" lightweight alloy 32 hole double wall rims, stainless steel spokes, and alloy hubs with nutted axles
TYRES26" x 1.75 slick
SADDLENeo Comfortech youth saddle
SEATPOST / CLAMP27.2mm alloy micro adjust with quick release clamp
EXTRASAlloy kickstand
COLOURSBrushed alloy / black, red fade
Specifications are subject to change at any time and without notice.
GEOMETRY
RECOMMENDED HEIGHT RANGE145+ cm
RECOMMENDED AGE RANGE7-12+ years
MIN. SADDLE HEIGHT (TO GROUND)740
MAX. SADDLE HEIGHT (TO GROUND)865
A - SEAT TUBE (CENTRE TO TOP)355
B - TOP TUBE LENGTH540
C - SEAT ANGLE73.0°
D - HEAD ANGLE70.0°
E - FORK RAKE45
F - WHEEL BASE1033
G - STAND OVER HEIGHT (TOP TUBE TO GROUND)665
H - CHAIN STAY LENGTH430
I - HEAD TUBE LENGTH110
J - BB DROP35
DROPOUT SPACING135
