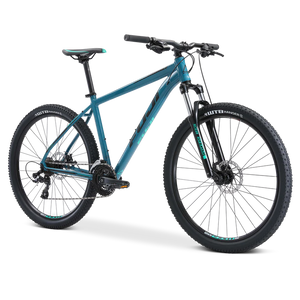

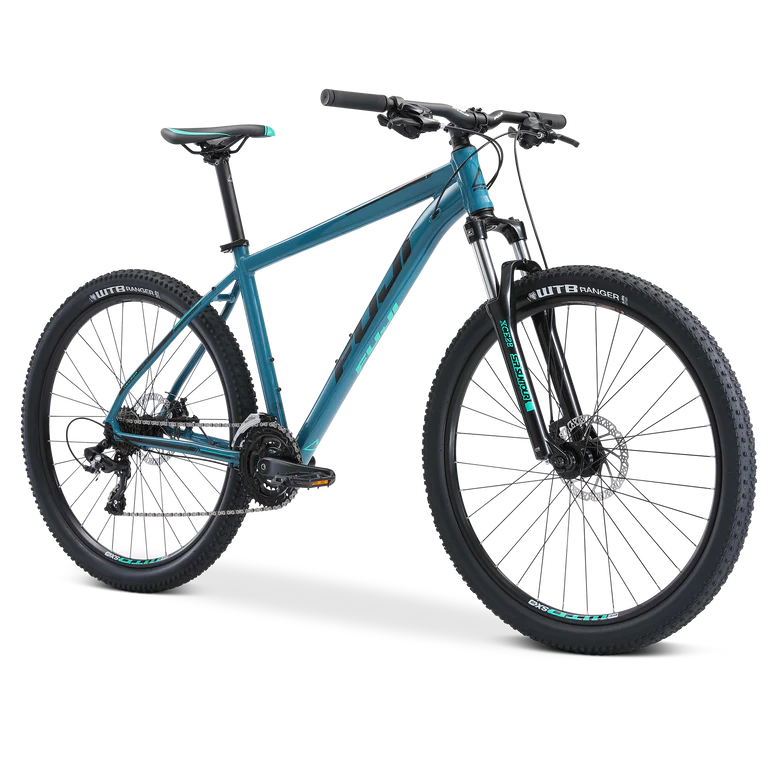

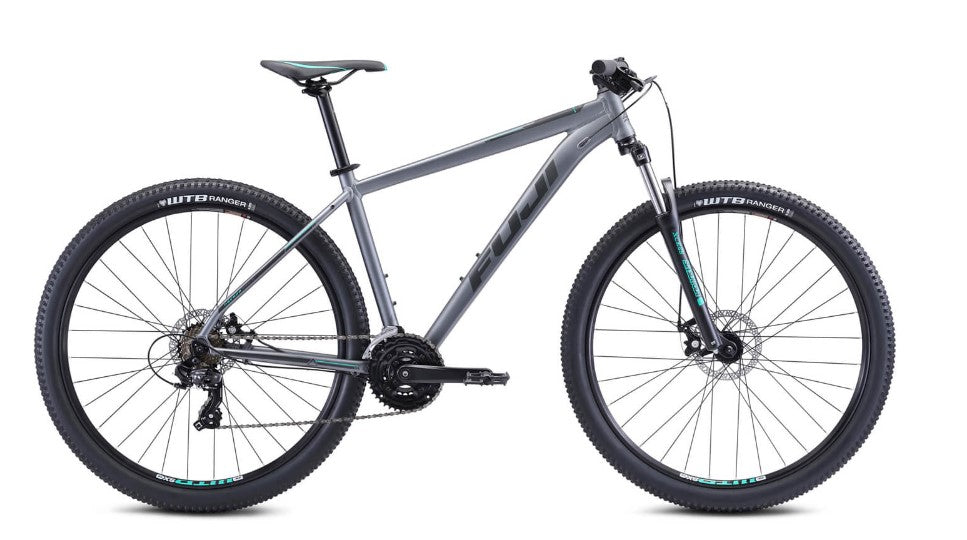

Fuji Nevada 29" 1.9
The perfect recreational mountain bike for new riders to dip their toes into trail riding, a commuting solution, or just an all around fun bike for the city or country. An all-new frame with updated geometry for 2021, the Nevada ensures comfort and reliability, while rear fender and carrier mounts plus a kickstand mount make this a true do-it-all machine.
- A2 aluminum frame featuring updated geometry to meet today's standards
- SR Suntour front suspension fork with 100mm of travel
- Shimano Tourney 3x7-speed drivetrain
- Tektro M260 mechanical disc brakes with 160mm rotors
- WTB SX19 wheelset with WTB Ranger Comp 29"x2.25" tires
Specifications
Sizes
S (15"), M (17"), L (19"), XL (21"), XXL (23")
Color(s)
Satin Graphite, Dark Teal
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Fork
SR Suntour SF19-XCE 29, 100mm OR ZOOM 525AMS
Crankset
Prowheel, 42/34/24T
Bottom Bracket
Sealed cartridge bearing
Pedals
Resin platform
Front Derailleur
Shimano Tourney OR microSHIFT Mezzo
Rear Derailleur
Shimano Tourney OR microSHIFT RD-M26CL
Shifters
Shimano EF41, EZ Fire, 3 x 7-speed OR microSHIFT TS-39
Cassette
Shimano TZ500 freewheel, 14-34T OR SunRace MFM-300
Chain
KMC HV500
Wheelset
WTB SX19 rims 32H, Formula DC-20 front, DC-31 rear disc hubs, black spokes
Tires
WTB Ranger Comp, 29" x 2.25", 27tpi OR Good Year Peak Premium
Brakeset
Tektro M280, mechanical disc, 160mm rotors
Brake Levers
Shimano EF41 OR Tektro RS360A
Headset
1 1/8" sealed bearings
Handlebar
Fuji flat bar, alloy, 710mm
Stem
Fuji, forged aluminum, +/-6°
Grips
Fuji Performance Grip
Saddle
Fuji Performance Saddle OR WTB OR SELLE ROYAL March 2
Seat post
Fuji, alloy, 30.9mm
Geometry
| Size | S | M | L | XL | |||||||
| Bike Size | 15" | 17" | 19" | 21" | |||||||
| A | Seat Tube, Center To Top | 370 | 420 | 470 | 520 | ||||||
| C | Top Tube, Effective | 591 | 611 | 636 | 653 | ||||||
| D | Head Tube Length | 95 | 105 | 110 | 120 | ||||||
| E | Seat Tube Angle | 73° | 73° | 73° | 73° | ||||||
| G | Head Tube Angle | 69° | 69° | 69° | 69° | ||||||
| H | Chainstay Length | 450 | 450 | 450 | 450 | ||||||
| I | Wheelbase | 1113.5 | 1134 | 1160 | 1177.5 | ||||||
| J | Bottom Bracket Drop | 55 | 55 | 55 | 55 | ||||||
| K | Fork Offset | 46 | 46 | 46 | 46 | ||||||
| M | Stack | 611.5 | 621 | 625.5 | 635 | ||||||
| N | Reach | 404 | 421 | 445 | 459 | ||||||
| O | Standover | 781 | 809 | 834.5 | 862 |
