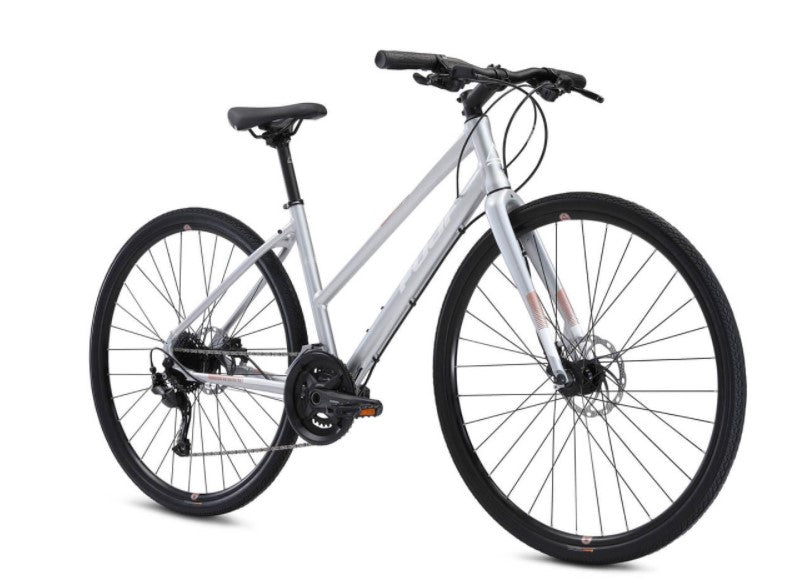

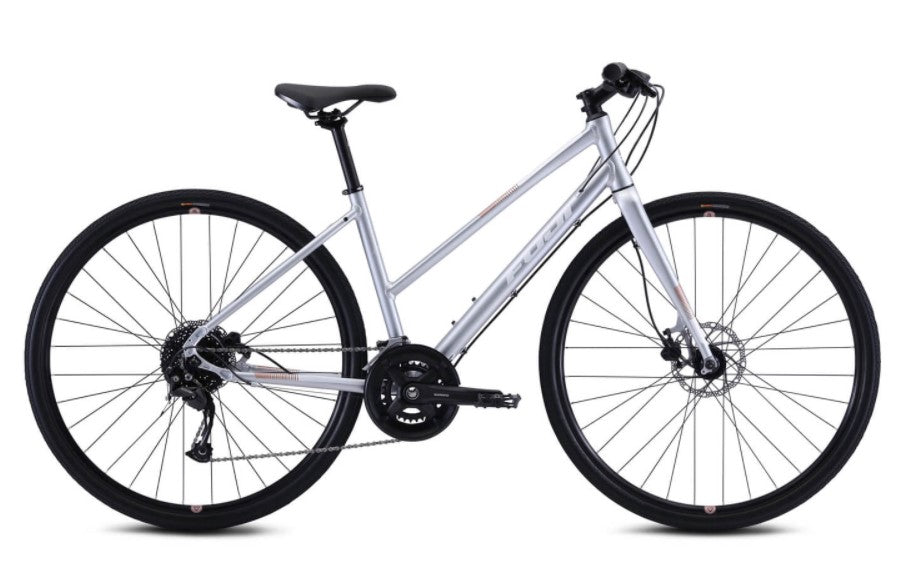

Fuji Absolute 1.7 ST

Known for versatility, the Absolute's geometry strikes a balance between speed and comfort, making it ideal for the fitness-minded rider, or the urbanite looking to ride to work or run errands.

Features

A2-SL custom butted aluminum frame for light weight and durability
Shimano Altus 9-speed drivetrain

Tektro hydaulic disc brakes for confident stopping
A step through frame features a lower top tube, making starting and stopping a breeze

Specifications

Sizes

S (15"), M (17"), L (19")

Silver

Frame

Fuji A2-SL custom butted alloy

Fork

Fuji A1 alloy

Crankset

Shimano Altus, 46/30T OR Prowheel RPP

Bottom Bracket

Shimano sealed cartridge bearing

Pedals

Resin platform

Front Derailleur

Shimano Acera OR microSHIFT R9

Rear Derailleur

Shimano Alivio shadow OR microSHIFT R9

Shifters

Shimano Altus, 2 x 9-speed OR microSHIFT R9 Xpress Shift

Cassette

Shimano Acera, 11-36T OR micrSHIFT CS-H092

Chain

KMC X9

Wheelset

Alex double wall rims 32h, stainless spokes

Tires

Kenda Tendril, 700 x 38c, K-shield flat protection OR Goodyear Transit Tour, 700 x 40c

Brakeset

Tektro HD-275, hydraulic disc, 160mm rotors

Brake Levers

Tektro HD-275, hydraulic disc

Headset

1-1/8" semi-integrated

Handlebar

Alloy, 18mm rise, 6° backsweep

Stem

3D-forged alloy, 17°, 31.8mm

Grips

Velo comfort sport

Saddle

Selle Royal Vivo Ergo

Seatpost

Alloy, 27.2mm

*Specifications subject to change without notice

Geometry

	Size	S	M	L
	Bike Size	15"	17"	19"
A	Seat Tube, Center To Top	381	432	483
C	Top Tube, Effective	519	539	555
D	Head Tube Length	135	150	170
E	Seat Tube Angle	75°	74°	73°
G	Head Tube Angle	69°	70°	71°
H	Chainstay Length	448	448	448
I	Wheelbase	1050	1052	1048
J	Bottom Bracket Drop	60	60	60
K	Fork Offset	45	45	45
M	Stack	541	560	583
N	Reach	374	378	378
O	Standover	670	681	681
	Stem	80	80	100
	Handlebar Width	620	620	660
	Crank	170	170	170
	Wheel Size	700c	700c	700c
	Seat Post Diameter	27.2	27.2	27.2
