Shimano Road Wheel RS500 Ultegra Set

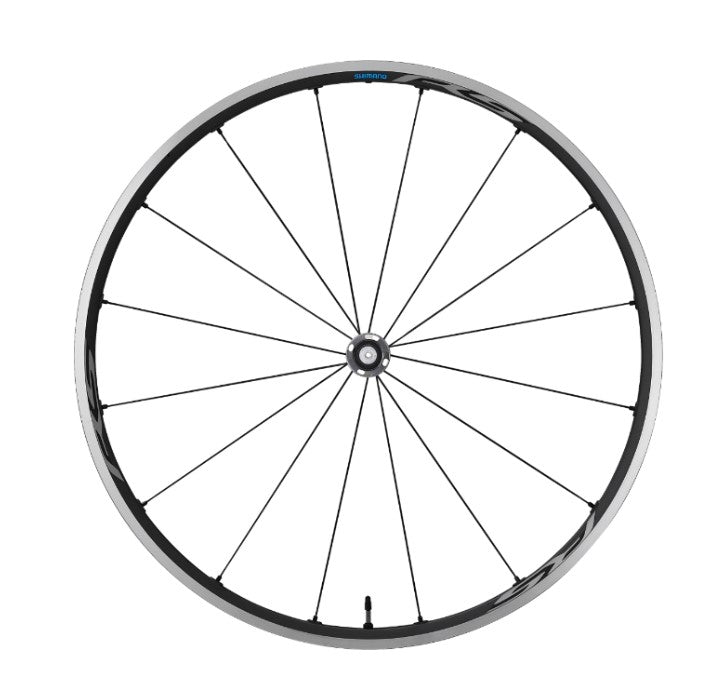

Front:
ULTEGRA - Tubeless - 24 mm Rim Depth - Rim Brake - Quick Release - Front Wheel
ULTEGRA RS500 wheels bring SHIMANO's premium race technology to everyday riding. The lightweight 24 mm rims accelerate quickly for optimal climbing while the tubeless construction offers versatility and reliability on the road.
- Efficient acceleration
- High drive rigidity
- Lightweight and durable
- Road tubeless
- Blazed on reinforcement aluminum rim
- Easy handling and maintenance
- Digital adjustment system
PRODUCT SPECIFICATIONS
| MODEL NO | WH-RS500-TL-F |
|---|---|
| SERIES | ULTEGRA R8000 Series |
| Color | Silver |
| Average weight | 705 |
| QR lever_Color | Silver |
|---|---|
| Brake type | Rim brake |
| O.L.D. (mm) | 100 |
| Axle_Length (mm) | 108 |
| Axle_Diameter (mm) | 14 |
| Axle_Fixing method | Quick release |
| Quick release skewer length (mm)_133 | ✔ |
| Bearing_Cone | CBN/Polish |
| Bearing_Cup | Polish |
| Brake Type | Rim brake |
| Digital adjustment system | ✔ |
| Front/Rear | Front |
| Grease holding function | ✔ |
| O.L.D. (mm) | 100 |
| Quick release nut_Color | Black |
| Reflector_AS | CATEYE RR-550-WUA SW |
| Reflector_DIN | CATEYE RR-317-WUA SW |
| Reflector_JIS/CPSC | CATEYE RR-550-WUW SW |
| Rim_Brazed reinforcement | ✔ |
| Rim_Height (mm) | 24 |
| Rim_Rim joint | Welded |
| Rim_Width (mm) | 20.8 |
| Seal_Hub | Contact |
| Spokes_Bladed | ✔ |
| Spokes_Butted | ✔ |
| Spokes_Number | 16 |
| Tire_Recommended size | 23-622 - 32-622 |
| Tire_Type | Tubeless |
| Wheel Size | 622 x 15C |
| Spokes_Straight spoke |
✔ |

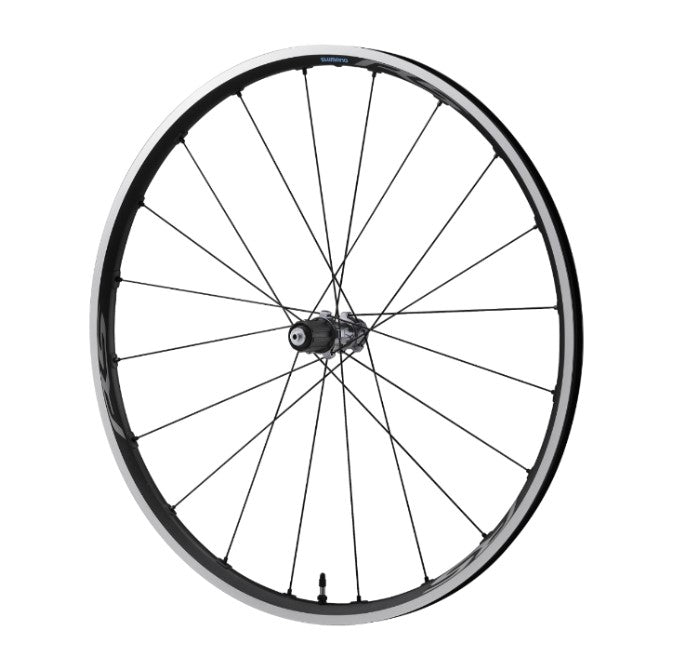

Rear:
ULTEGRA - Tubeless - 24 mm Rim Depth - Rim Brake - Quick Release - Rear Wheel
ULTEGRA RS500 wheels bring SHIMANO's premium race technology to everyday riding. The lightweight 24 mm rims accelerate quickly for optimal climbing while the tubeless construction offers versatility and reliability on the road.
- Efficient acceleration
- High drive rigidity
- Lightweight and durable
- Road tubeless
- Blazed on reinforcement aluminum rim
- Easy handling and maintenance
- Digital adjustment system
PRODUCT SPECIFICATIONS
| MODEL NO | WH-RS500-TL-R |
|---|---|
| SERIES | ULTEGRA R8000 Series |
| Color | Silver |
| Average weight | 944 |
| Remarks | * The adapter is needed to use 10-speed cassette sprocket |
|---|---|
| QR lever_Color | Silver |
| Brake type | Rim brake |
| O.L.D. (mm) | 130 |
| Rear speeds | 10*/11 |
| Axle_Length (mm) | 141 |
| Axle_Diameter (mm) | 14 |
| Axle_Fixing method | Quick release |
| Quick release skewer length (mm)_163 | ✔ |
| Quick release skewer length (mm)_168 | ✔ |
| Bearing_Cone | CBN/Polish |
| Bearing_Cup | Polish |
| Brake Type | Rim brake |
| Compatible spoke protector | CP-WH23 (23-28T) CP-W120 (32T) CP-W020 (10-speed) |
| Digital adjustment system | ✔ |
| Front/Rear | Rear |
| Grease holding function | ✔ |
| O.L.D. (mm) | 130 |
| Quick release nut_Color | Black |
| Rear speeds | 10 */11 |
| Reflector_AS | CATEYE RR-550-WUA SW |
| Reflector_DIN | CATEYE RR-317-WUA SW |
| Reflector_JIS/CPSC | CATEYE RR-550-WUW SW |
| Rim_Brazed reinforcement | ✔ |
| Rim_Height (mm) | 24 |
| Rim_OFFSET RIM | ✔ |
| Rim_Rim joint | Welded |
| Rim_Width (mm) | 20.8 |
| Seal_FREEHUB body | Contact |
| Seal_Hub | Contact |
| Spokes_Bladed | ✔ |
| Spokes_Butted | ✔ |
| Spokes_Number | 20 |
| Tire_Recommended size | 23-622 - 32-622 |
| Tire_Type | Tubeless |
| Wheel Size | 622 x 15C |
| Spokes_Straight spoke | ✔ |
