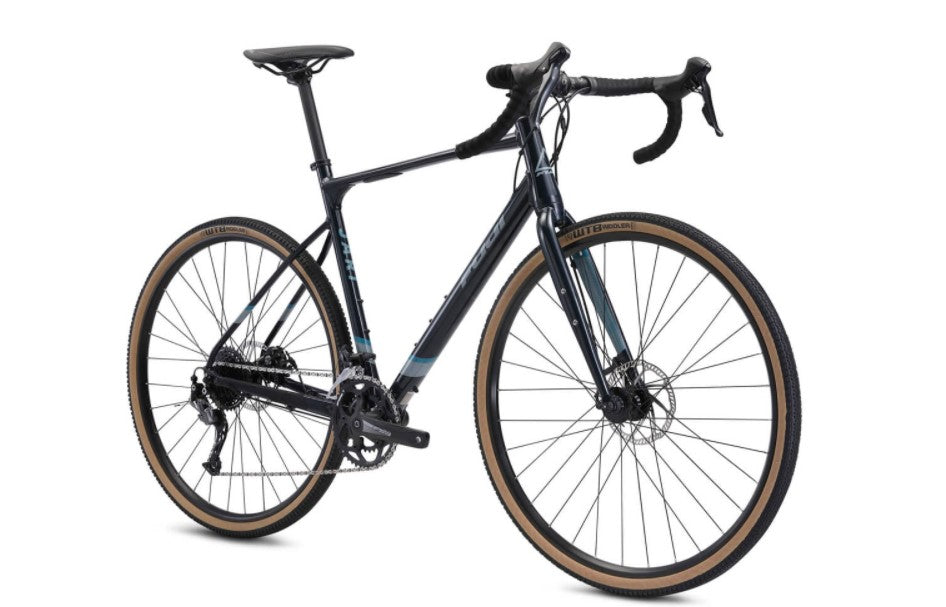

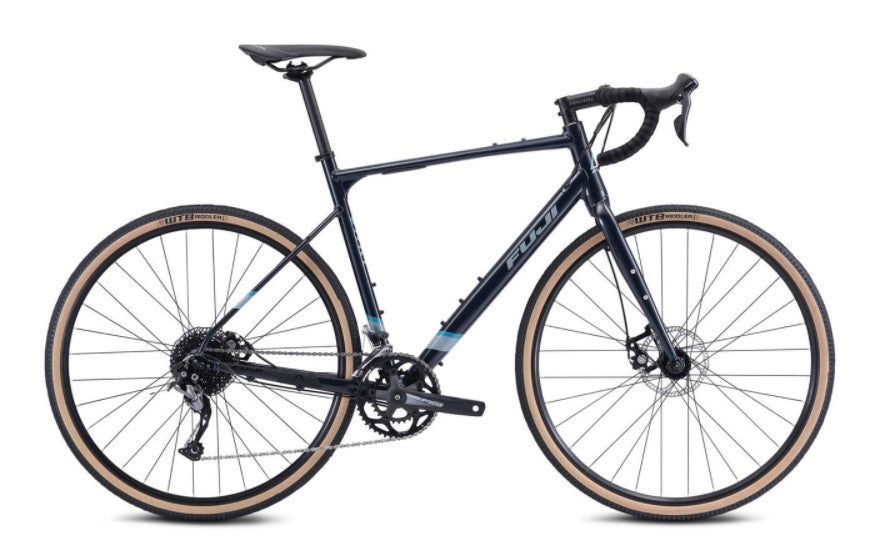

Fuji Jari 2.3
Performance, utility and versatility the Jari delivers them all. Designed to take on gravel races, light touring, bikepacking or pretty much whatever you can throw at it. The Jari is a chameleon that seamlessly changes into whatever you need it to be. Long, slack geometry provides a stable and confidence-inspiring ride no matter what the terrain, allowing you to comfortably grind gravel or tackle tarmac all day long. Remember the journey is the best part of the trip and the Jari is the perfect traveling partner.
Features
- Fuji A6-SL custom-butted alloy frame for light weight, strength, and reliability
- Chromoly fork with low-rider water bottle and rack mounts
- Shimano Sora Components
- WTB ST i23 Light TCS rims with formula hubs
- WTB Riddler 700x37 c tires
- Rack and fender mounts enhance versatility
Technology
A6-SL Super Butted Aluminum
Fuji's lightest and strongest aluminum frame material that has multiple butting profiles in the frame tubes and reduces material in low stress areas which creates a lighter frame without sacrificing frame stiffness and durability.
Adventure Geometry
Fuji's adventure geometry features a long wheelbase and slack headtube and seattube angles that provides stability and positions the rider over the rear wheel for increased traction and control.
Internal Cable Routing
Cables are routed inside the frames tubes for improved aerodynamics, longer cable life and a clean aesthetic.
Specifications
Sizes
XS (48cm), S (52cm), M (54cm), L (55.5cm), XL (57.5cm), XXL (60cm)
Color(s)
Frame
A6-SL Super-Butted Aluminum, tapered head tube
Fork
Chromoly, tapered steerer, low-rider water bottle and rack mounts
Crankset
FSA Tempo, 46/30T
Bottom Bracket
Sealed cartridge bearing
Front Derailleur
Shimano Sora OR microSHIFT R9
Rear Derailleur
Shimano Alivio OR microSHIFT R9
Shifters
Shimano Sora STI, 2 x 9-speed OR microSHIFT R9 Dual Control
Cassette
Shimano HG200, 11-36T
Chain
KMC X9
Wheelset
WTB ST i23 TCS rims, Formula hubs, 32/32H
Tires
WTB Riddler, 700 x 37c, 30tpi OR Good Year Connector Premium OR Panaracer
Brakeset
Tektro Mira mechanical disc, 160mm rotors
Brake Levers
Shimano Sora
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Handlebar
Oval Concepts 325, 6061 alloy, 31.8mm clamp, 125mm drop, 25° flare, 4° sweep
Stem
Oval Concepts 313, 3D-forged 6061, +/-6°
Tape
Oval Concepts 300, suede
Saddle
Oval Concepts 238, steel rails OR Cionlli 1340N
Seatpost
Fuji, alloy, 27.2mm
Geometry
| Size | XXS | XS | S | M | L | XL | XXL | ||||
| Bike Size | 46cm | 48cm | 52cm | 54cm | 55.5cm | 57.5cm | 60cm | ||||
| A | Seat Tube C To T | 460 | 480 | 520 | 540 | 560 | 580 | 600 | |||
| B | Seat Tube Effective | 460 | 480 | 520 | 540 | 55.5 | 57.5 | 600 | |||
| C | Top Tube Effective | 505 | 510 | 530 | 550 | 565 | 580 | 600 | |||
| D | Head Tube Length | 100 | 120 | 140 | 155 | 170 | 190 | 210 | |||
| E | Seat Tube Angle / Actual | 74.5 | 75 | 74 | 73 | 73 | 73 | 73 | |||
| G | Headtube Angle | 69.5 | 70.5 | 70.5 | 71 | 71.5 | 71.5 | 71.5 | |||
| H | Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 | 435 | |||
| I | Wheelbase | 1010 | 1012 | 1023 | 1028 | 1039 | 1054 | 1074 | |||
| J | BB Drop | 69 | 72 | 72 | 70 | 70 | 70 | 70 | |||
| K | Fork Offset | 48 | 48 | 48 | 48 | 48 | 48 | 48 | |||
| L | Trail | 73 | 73 | 70 | 67 | 64 | 64 | 64 | |||
| M | Stack | 522 | 548 | 560 | 584 | 595 | 616 | 635 | |||
| N | Reach | 360 | 363 | 368 | 372 | 382 | 392 | 405 | |||
| O | Standover | 745 | 776 | 801 | 804 | 824 | 841 | 865 | |||
| Stem | 80 | 80 | 80 | 90 | 90 | 110 | 110 | ||||
| Handlebar Width | 400 | 400 | 400 | 420 | 420 | 440 | 460 | ||||
| Crank | 165 | 170 | 170 | 172.5 | 172.5 | 175 | 175 | ||||
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | 700 | ||||
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
